Description

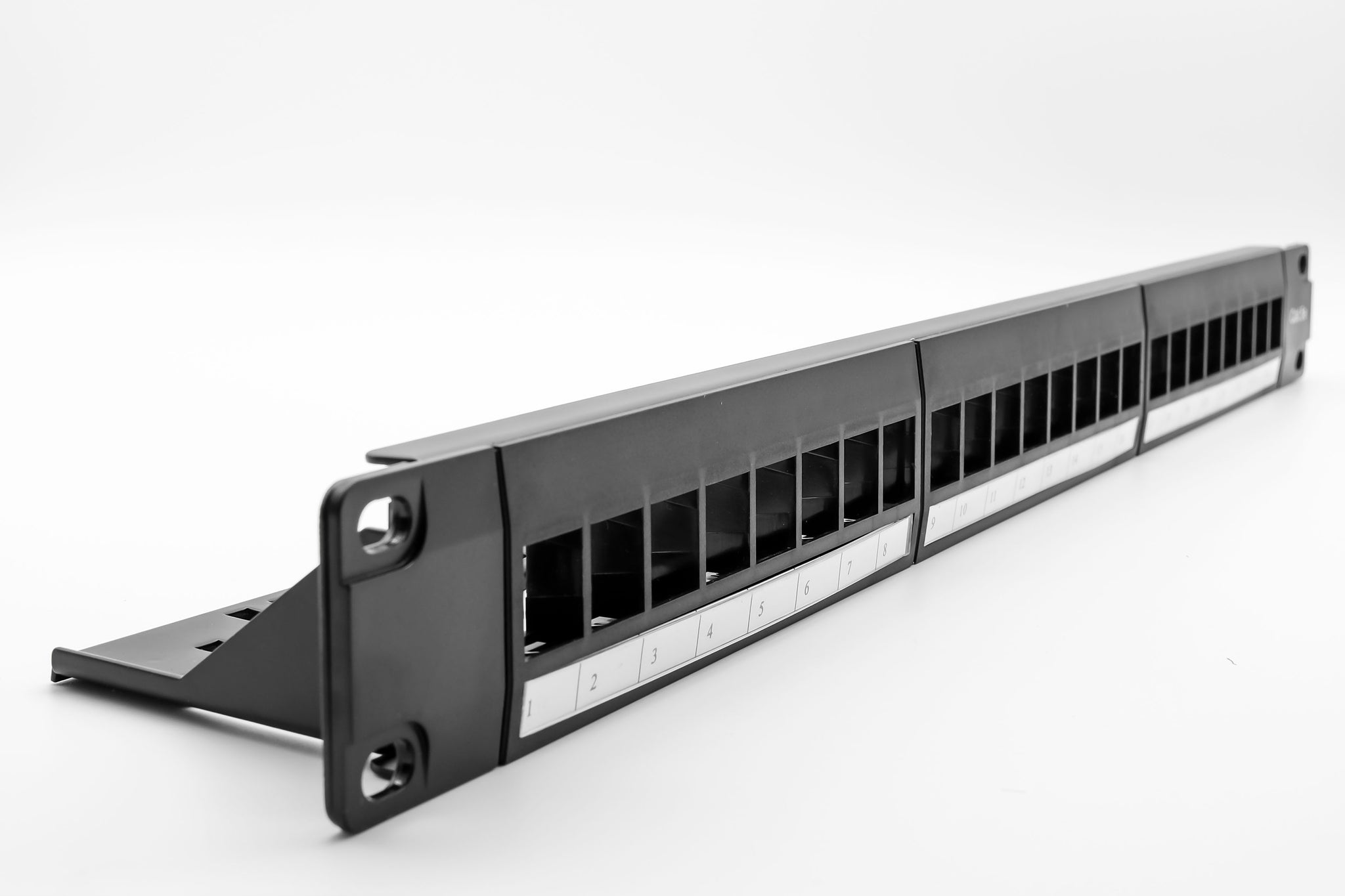

The LMS Data PPAN-24-THRU is 24 Port certified CAT5e UTP Patch Panel which is unique in that it has fully modular and replaceable CAT5eUTP ports. Simply snap in or snap out and mix and match with other accessories or when a port is damaged.
Fully Gigabit Ethernet certified means its ideal for running legacy and advanced networking protocols to Gigabit Switches up up to 1000Mbps. Also ideal for telecom, VoIP, CCTV-IP and other Ethernet based standards.
Long-life, nickel plated female RJ45s, the port modules use a through-coupler system so simply connect a RJ45 terminated cable to the rear of the panel.
Key Features
Certified CAT5E Performance for Gigabit Ethernet

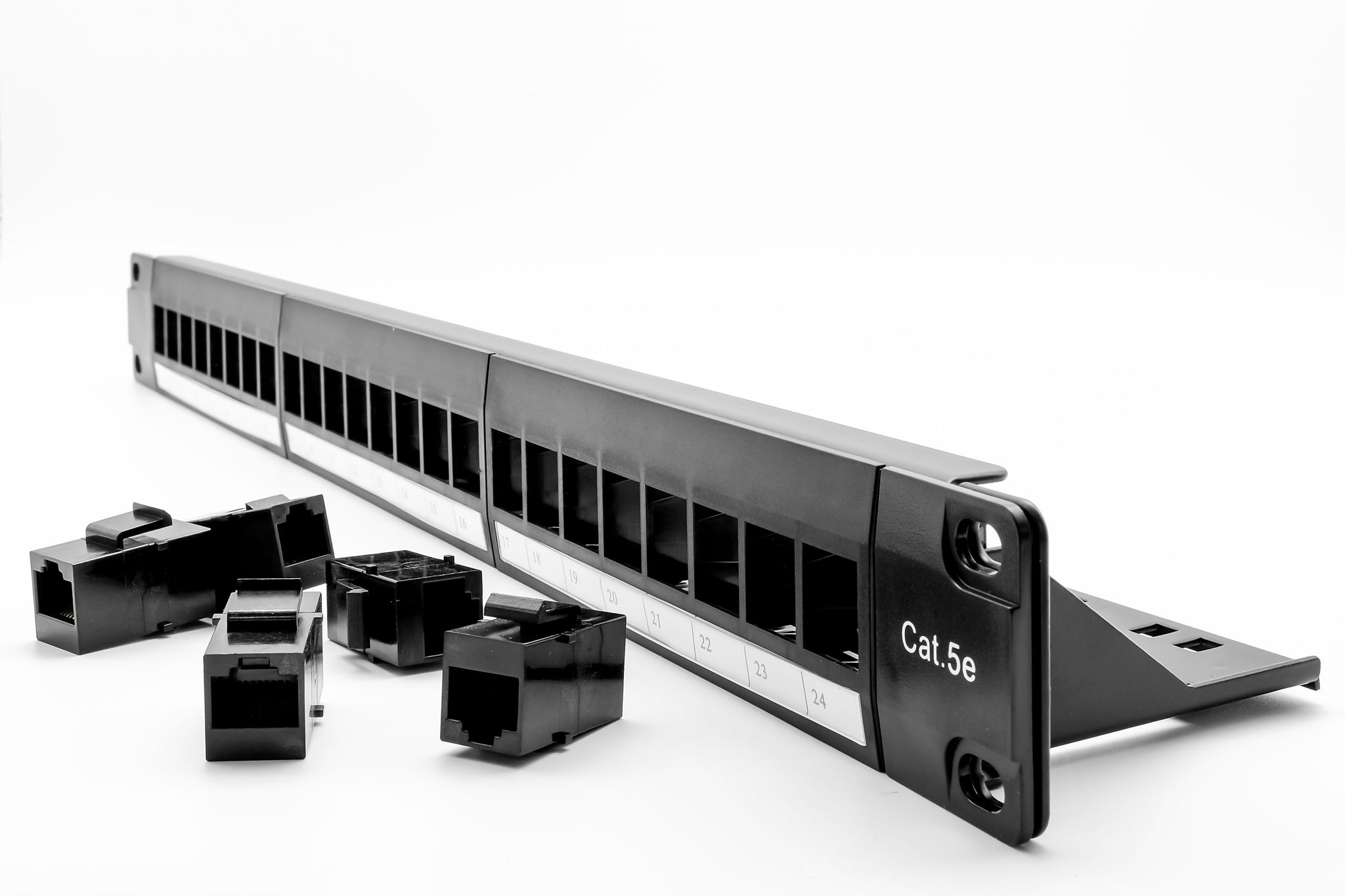

Fully modular, snap-in, snap-out RJ45 port system
1u High means it fits in the smallest of data cabinets
Part of the Synthesis 25-Year Warranty Solution
Applications
Office, Education and Home Structured Cabling Installs
Ideal for Gigabit Ethernet (1000Mbps) Data Networks
Create fault tolerant LANs by simply patching ports
Product Code
Part Number: PPAN-24-THRU
EAN: 8400800032188
Weight: 0.5Kg approx
Technical Specifications
Port Count 24 Ports UTP
Dimensions 1U 19-Inch Design Format
Design Through Coupler System
Performance 10/100/1000Mbps Gigabit Compliance
RJ45/IDC Connects Nickel and Phosphor Bronze
Port Identification Numbered
Fixings Supplied M6 Nuts and Bolts
* Specifications and product design are subject to change. E&OE.
Files

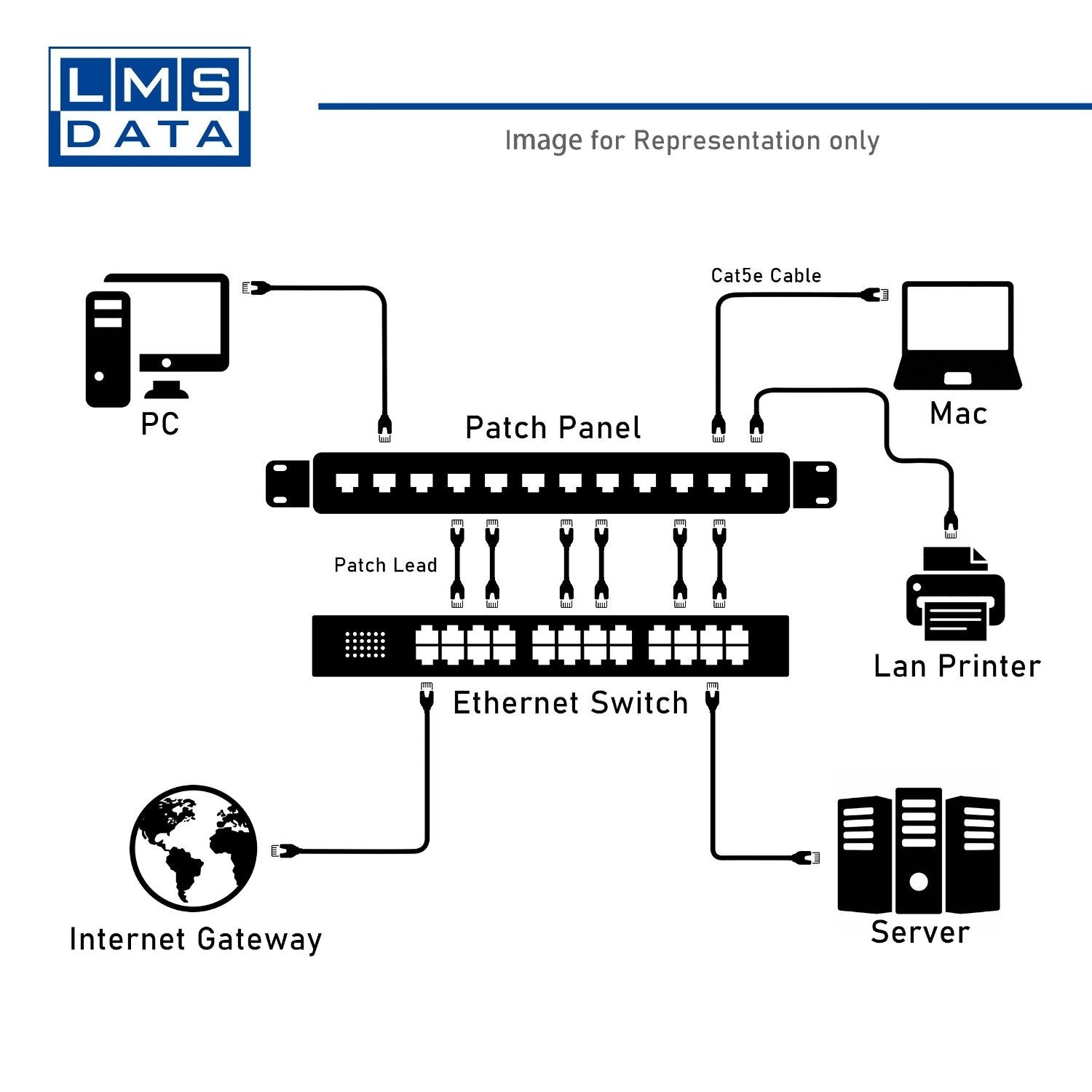

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
