Description
*** CARTON - 20pcs x PPAN-24-CAT6-N - only £12.50/pc +VAT ***

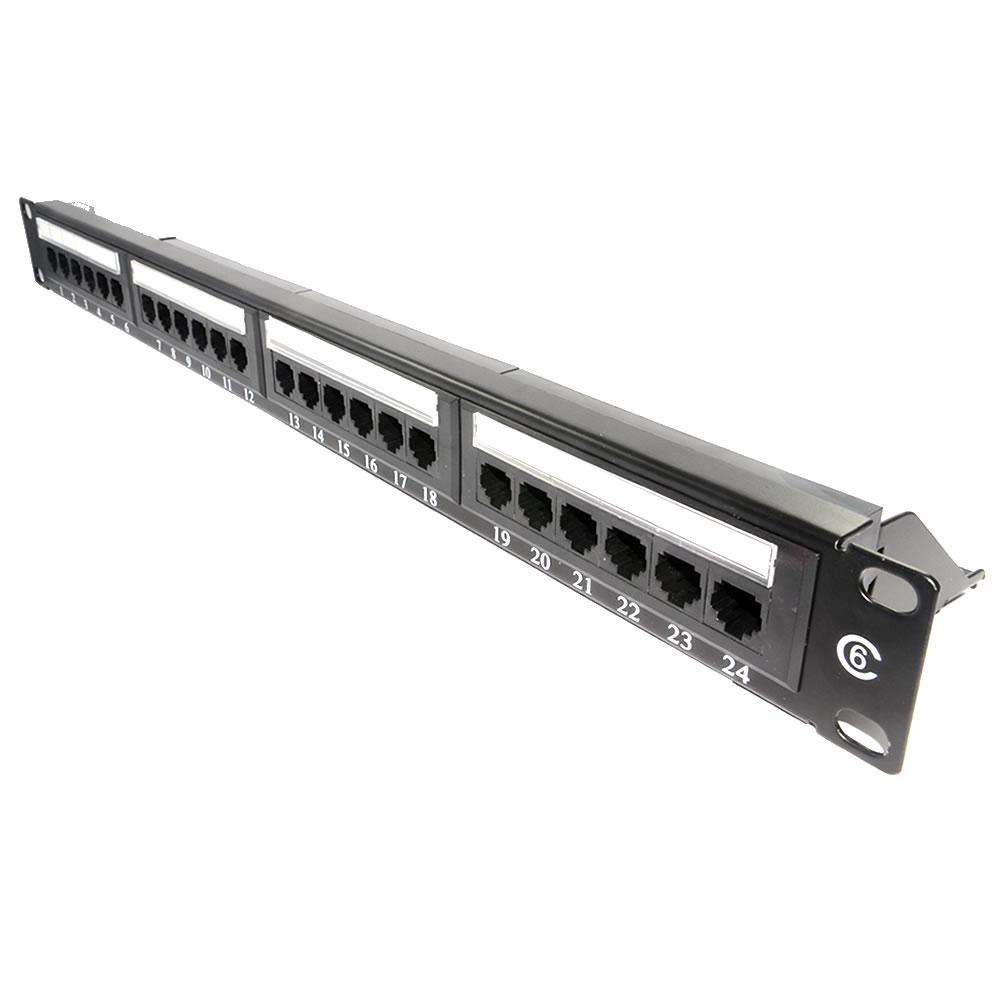

The new LMS Data PPAN-24-CAT6-N offers performance Category 6 performance for your current and next generation networking applications, for gigabit Ethernet and advanced telco applications for example.
Industry-standard, dual-personality IDC punchdown for Krone(tm) and 110 tooling, clear colour coding for true TIA/ EIA compliance and long life RJ45 UTP ports.
Part of the LMS Data 25-year warranty system*, the PPAN-24-CAT6-N is your ideal patching solution for warranted and un-warranted current and next generation networking, telco and server applications - at a competitive price point.
Key Features:
- Certified CAT6 Performance for Gigabit Ethernet
- Popular Krone(tm) KATT Dual Purpose IDC Punchdown

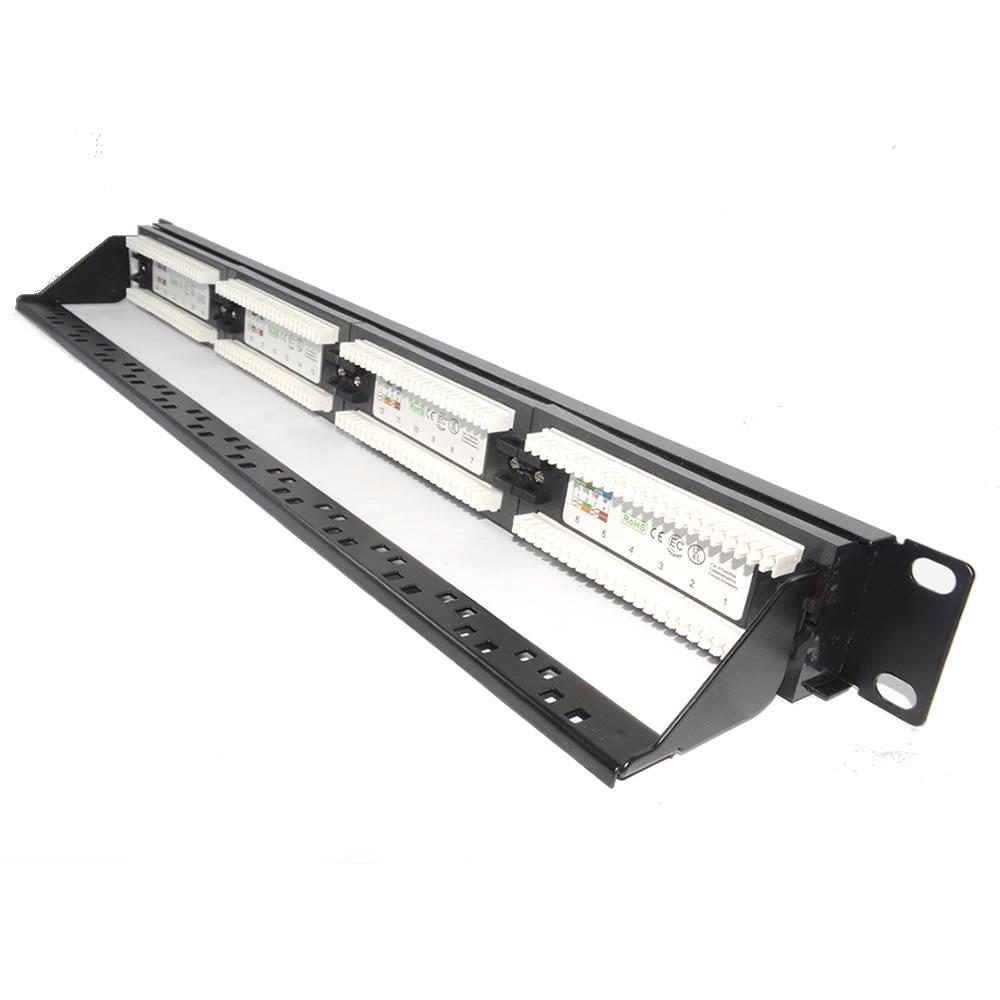

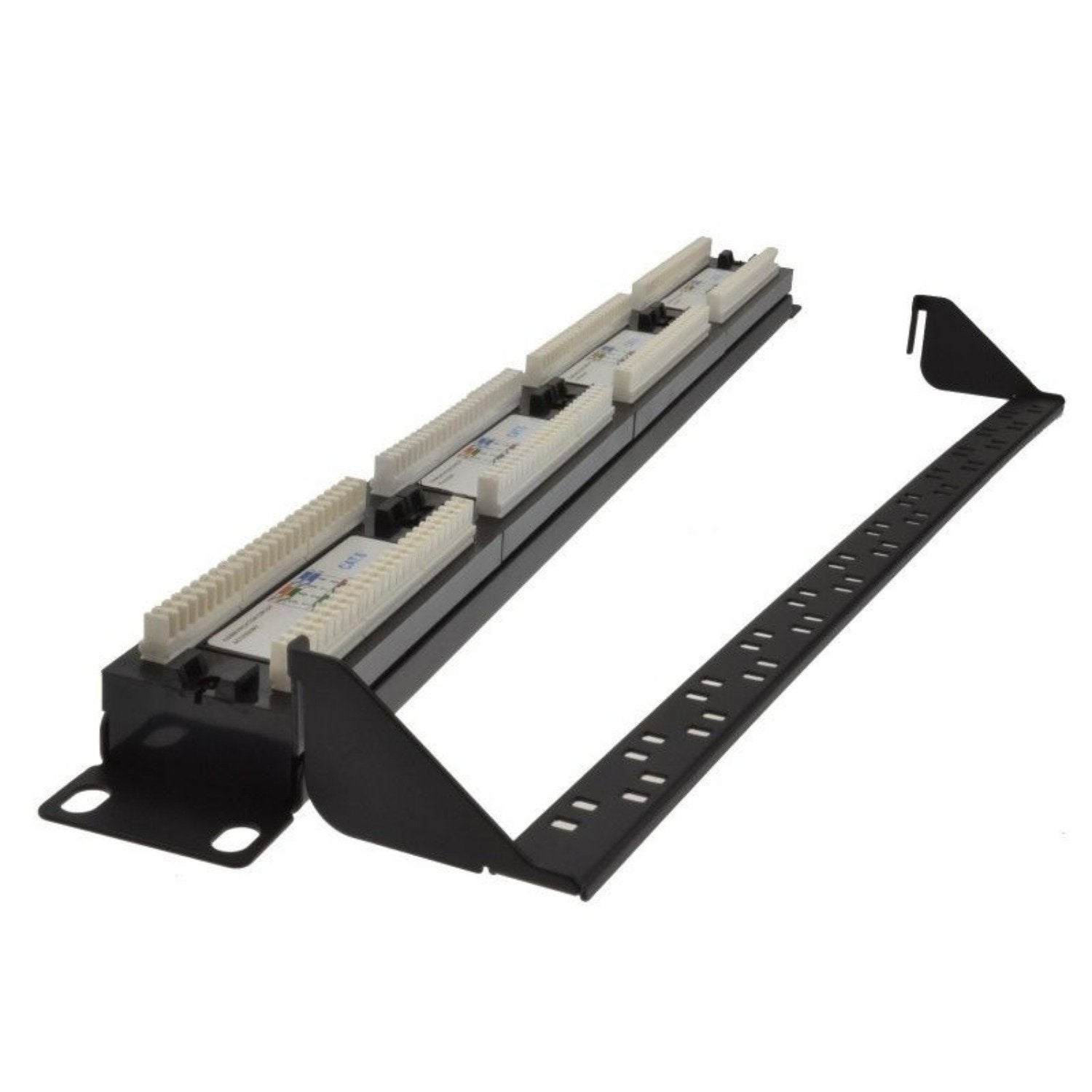

- Removable Rear Cable Management Bar for Cable Anchoring
- Part of the Synthesis 25-Year Warranty Solution
Applications:
- Office, Education, and Home Structured Cabling Installs
- Ideal for Gigabit Ethernet (1000Mbps) Data Networks
- Create fault-tolerant LANs by simply patching ports
Specifications:
- Port Count 24 Ports UTP
- Dimensions 1U 19-Inch Design Format
- Conformance TIA-EIA-568A/568-B2.1 Coded IDC
- Performance 10/100/1000Mbps Gigabit Compliance
- RJ45/IDC Connects Nickel and Phosphor Bronze
- Port Identification Numbered and Bespoke ID Marker
- Fixings Supplied M6 Nuts and Bolts
* Specifications and product design are subject to change. E&OE.
-
* Apply for a cost-free LMS Data 25-year warranty system when buying all LMS DATA point-to-point products. (Module, Patch Panel & Solid Cable)
Technical Info:
- SKU/MPN: PPAN-24-CAT6-N
- EAN: 8400800036834
- Carton Qty: 20 pcs
- Weight: 0.5Kg approx
Files:
Check Out Our Range of Structured Cabling System Accessories >> Click Here
Go Back to Collection

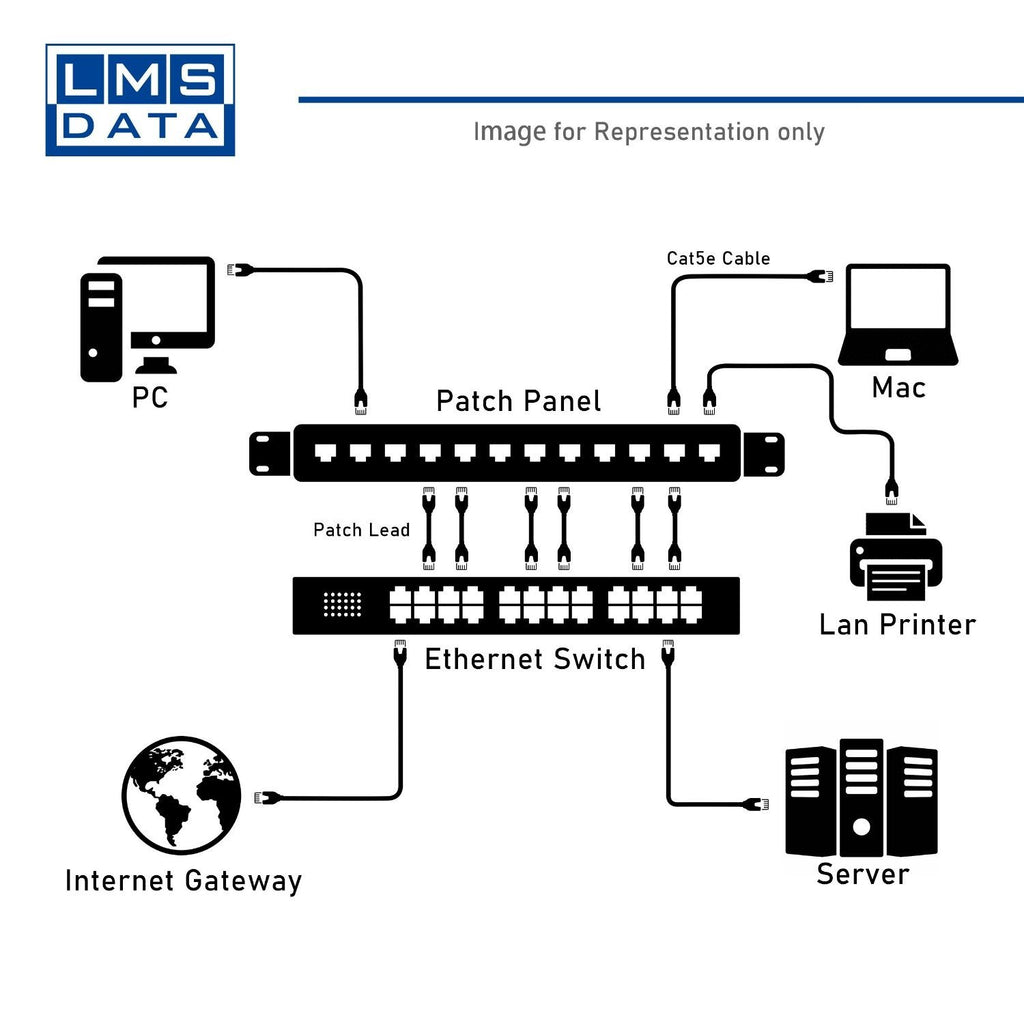

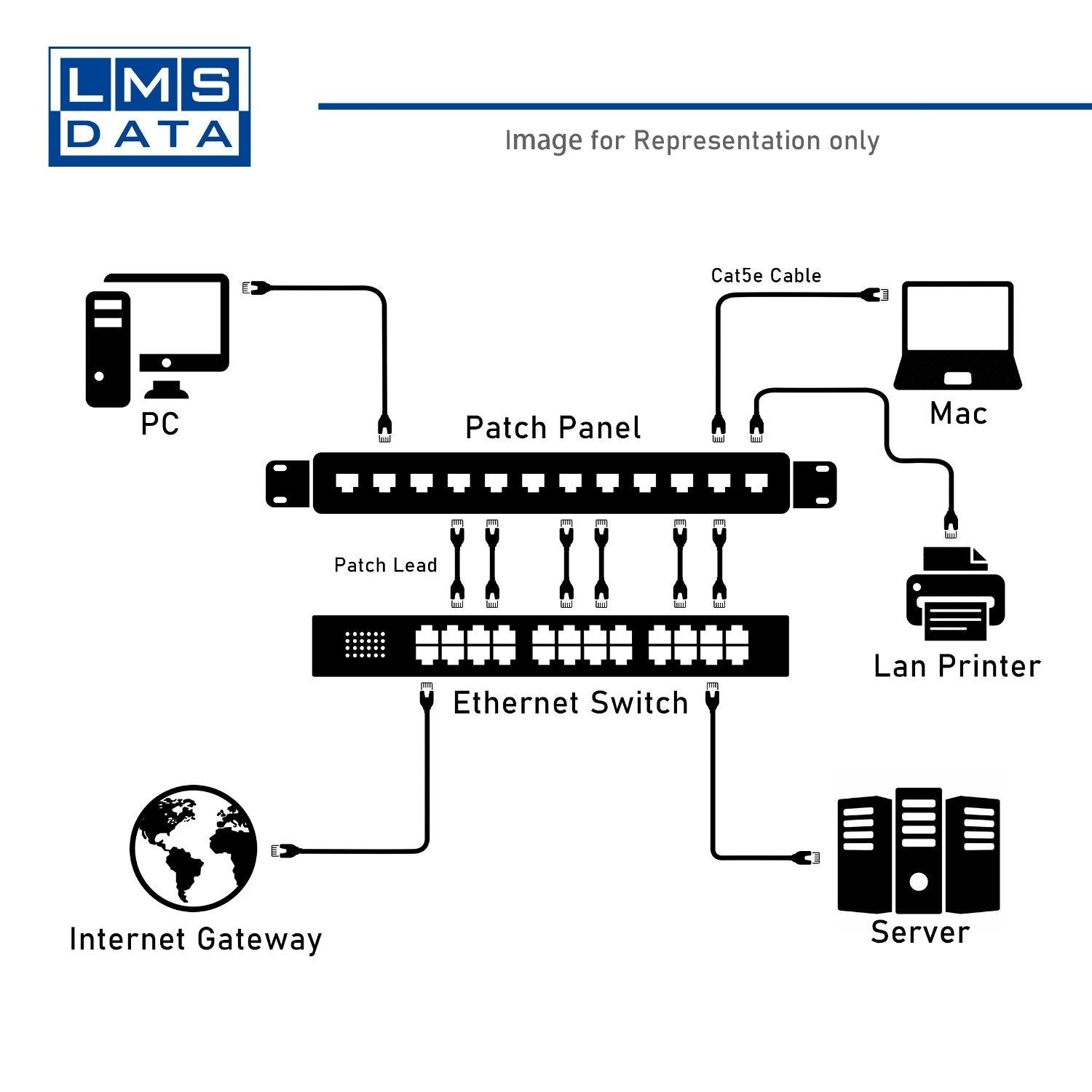

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
