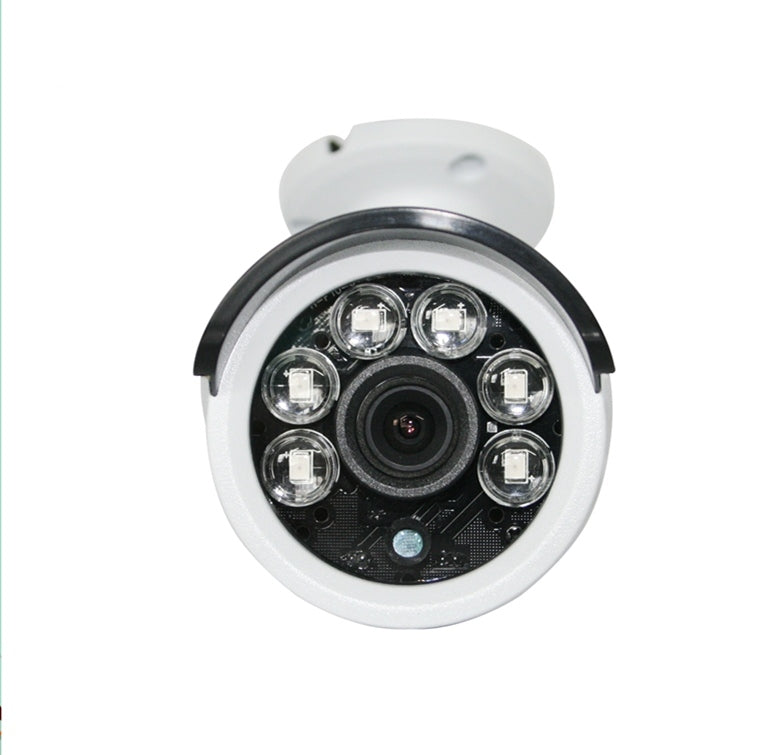

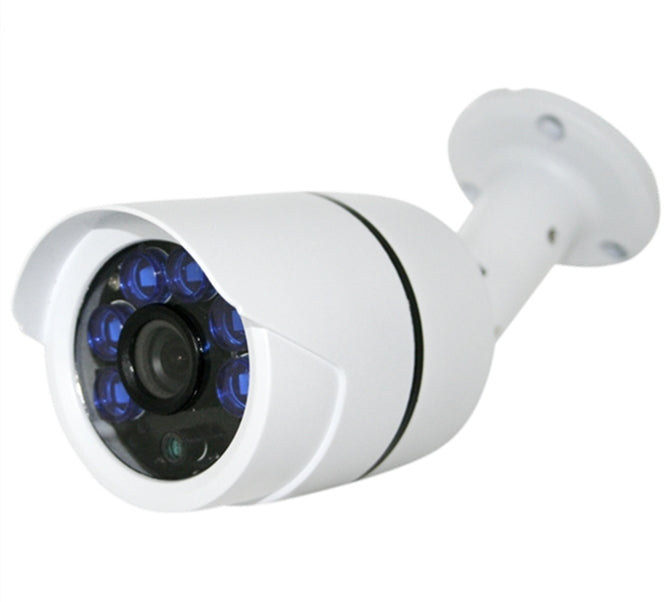

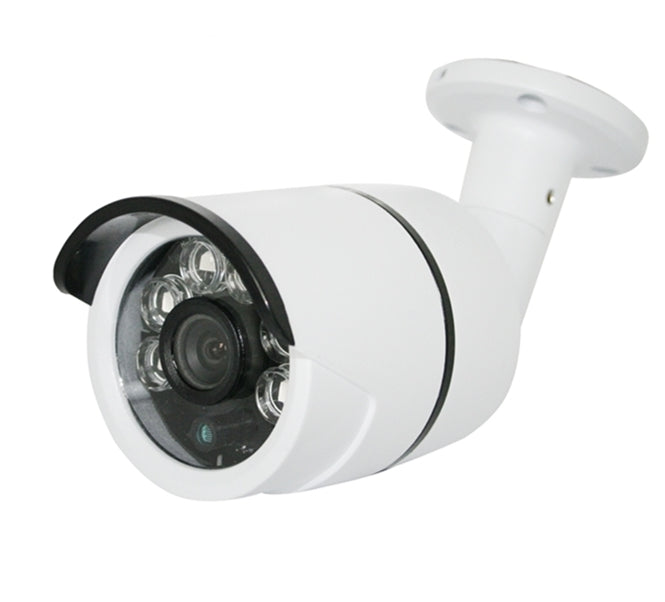

4IN1 Hybrid HD Bullet Camera | 2MP OSD | 3.4mm IR-Cut | PAL DC12V (CAM-MAV-863Q3)

Install CAM-MAV-863Q3 cameras wherever you need them most - indoors or outdoors, and let them keep the entire house under protection.

Never worry about what weather might bring, waterproof CAM-MAV-863Q3 cameras will always be there when you need them.

Thanks to the High resolution 1080P, CAM-MAV-863Q3 cameras provide clear images, even in the dark.

IR Waterproof Camera IP66

Board Lens 3.6mm/F2.0

6pcs Array leds,30m

Includes bracket

Dimension:155X62X63mm

Weight：6kg

The transmission distance over 500 meters



Key Features



◆High Performance HDI8901 ISP Processor；

◆TVI、CVI、AHD、CVBS four mode to switch；

◆BNC interface, Support 75-3 coaxial cable and transfer 500meters;

◆IR-CUT function, Day and night monitoring;

◆Support the OSD menu and the switch mode



Technical Specifications

Model                             CAM-MAV-863Q3
System                           PAL/NTSC
Scanning System            2：1 Interlace
Image Device                 1/3’’ CMOS（V30E+Sony323）Low-Illumination
Scanning Frequency       50HZ（PAL）/60HZ（NTSC）
Synchronization              Internal
Effective Pixels                2.0megapixel (1920*1080P)
Video Standard              TVI、CVI、AHD and CVBS
Video Output                 1ch TVI(CVI、AHD、CVB) output (can be switched by OSD)
Color                               Color to B/W (External drive)
S/N Ratio                        ≥46.4db（Max 67.3db）
Min illumination             0.1LUX（0LUX IR on）
IR distance                      30M
IR leds                             6pcs Array leds
Lens                                3.6mm/F2.0
OSD                                Optional
E-Shutter                        1/50~1/100,000s
Operation Temperature   -30℃～+60℃
Storage Temperature       -40℃～+80℃
Input Voltage/Current     DC12V
Storage humidity              Indoor 85% RH (No condensation)
Power Max                       500MA
Dimension                       155X62X63mm

Files

CAM-MAV-863Q3 Data Sheet - Click Here
