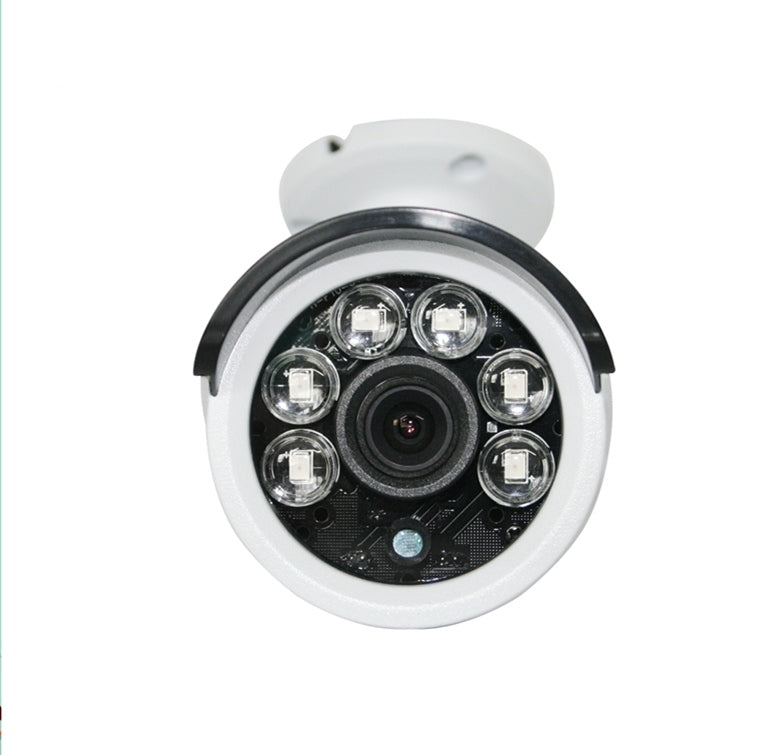

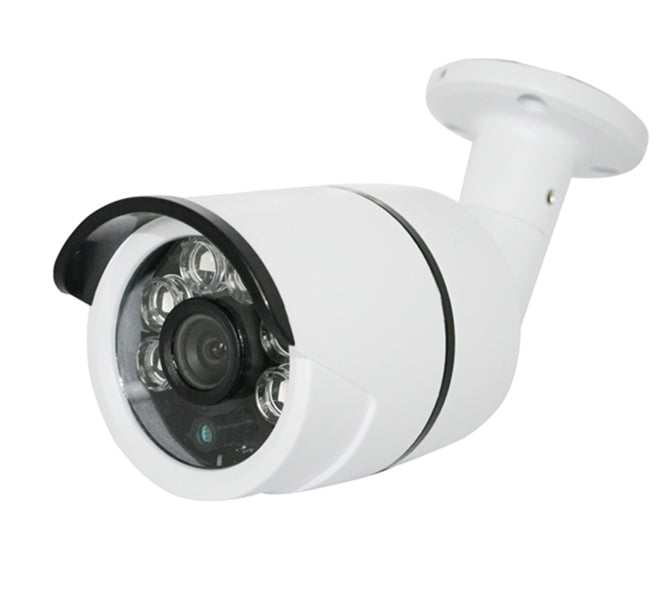

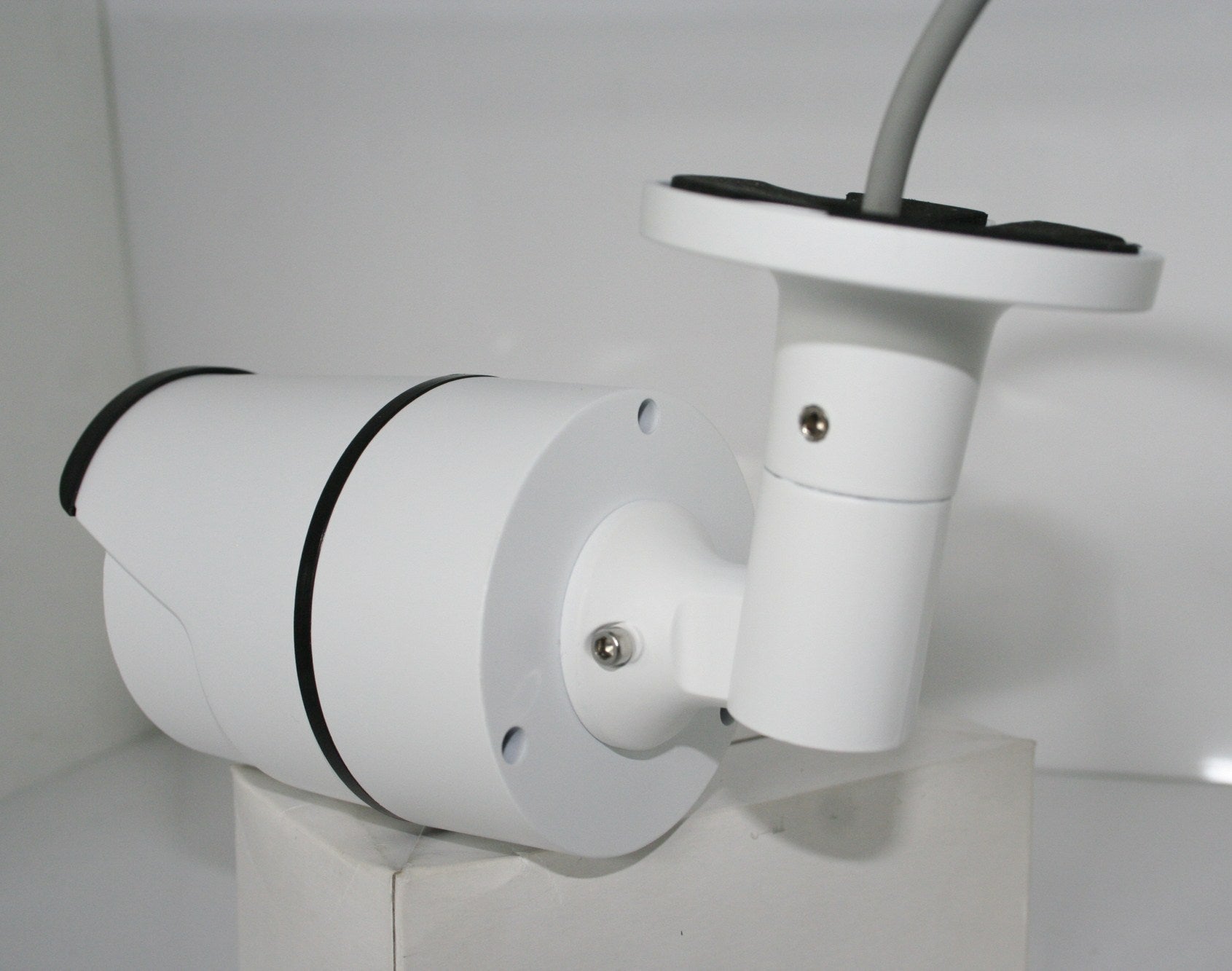

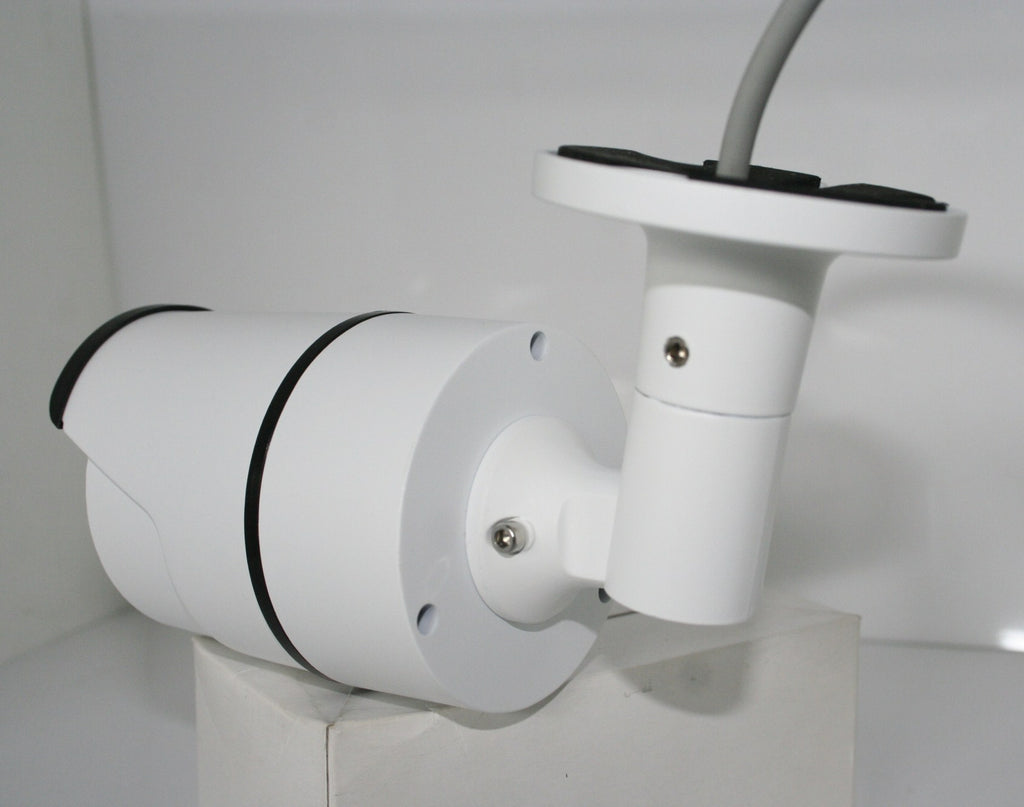

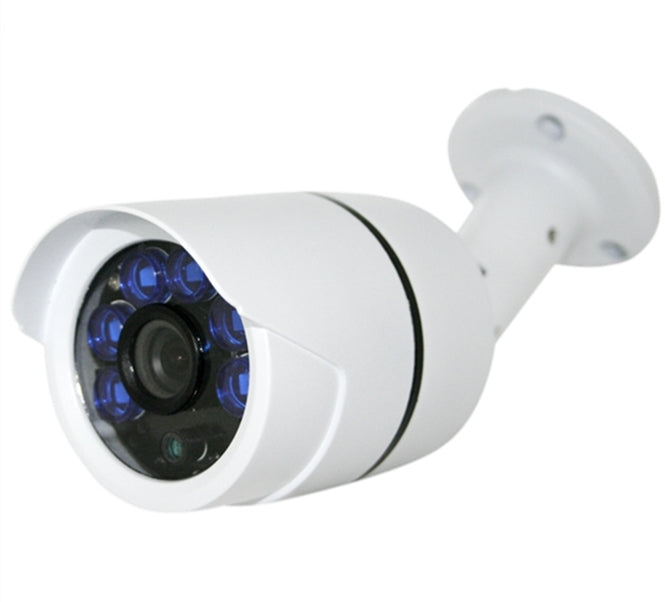

AHD IR Waterproof Bullet CCTV Security Camera | 2MP | 3.6mm IR-Cut | PAL DC12V (CAM-MAV-643Q3)

Install CAM-MAV-643Q3 cameras wherever you need them most - indoors or outdoors, and let them keep the entire house under protection.

Never worry about what the weather might bring, waterproof CAM-MAV-643Q3 cameras will always be there when you need them.

Thanks to the High-resolution 1080P, CAM-MAV-643Q3 cameras provide clear images, even in the dark.

Key Features:

• IR Waterproof Camera IP66
• Board Lens 3.6mm/F2.0
• 6pcs Array LEDs,30m
• Includes Bracket
• Dimension: 155X62X63mm
• Weight：0.6kg
• Maximum transmission distance up to 500 meters;

Technical Specifications:

• Model    CAM-MAV-643Q3

• System    PAL/NTSC

• Scanning System    2：1 Interlace

• Image Device    1/3’’ CMOS（XM320+F37）Low-Illumination

• Scanning Frequency    50HZ（PAL）/60HZ（NTSC）

• Synchronization    Internal

• Effective Pixels    2.0megapixel (1920*1080P)

• Video Output    AHD（1.0VP）

• Color    Color to B/W (External drive)

• S/N Ratio    ≥46.4db（Max 67.3db）

• Min illumination    0.1LUX（0LUX IR on）

• IR distance    30M

• IR LEDs    6pcs Array LEDs

• Lens    3.6mm/F2.0

• OSD    Optional

• E-Shutter    1/50~1/100,000s

• Operation Temperature    -30℃～+60℃

• Storage Temperature    -40℃～+80℃

• Input Voltage/Current    DC12V

• Storage humidity    Indoor 85% RH (No condensation)

• Power    Max 500MA

• Dimension    155X62X63mm


Files:

• CAM-MAV-643Q3 Data Sheet - Click Here
