HDMI Extender 1.3v over Cat5e/Cat6 (150m)

Professional HDMI Extension Solutions – Extending Your Multimedia HDMI Viewing Experience

Looking to drastically extended your HD display setup to around 150 metres from your HDMI source using standard Ethernet cables

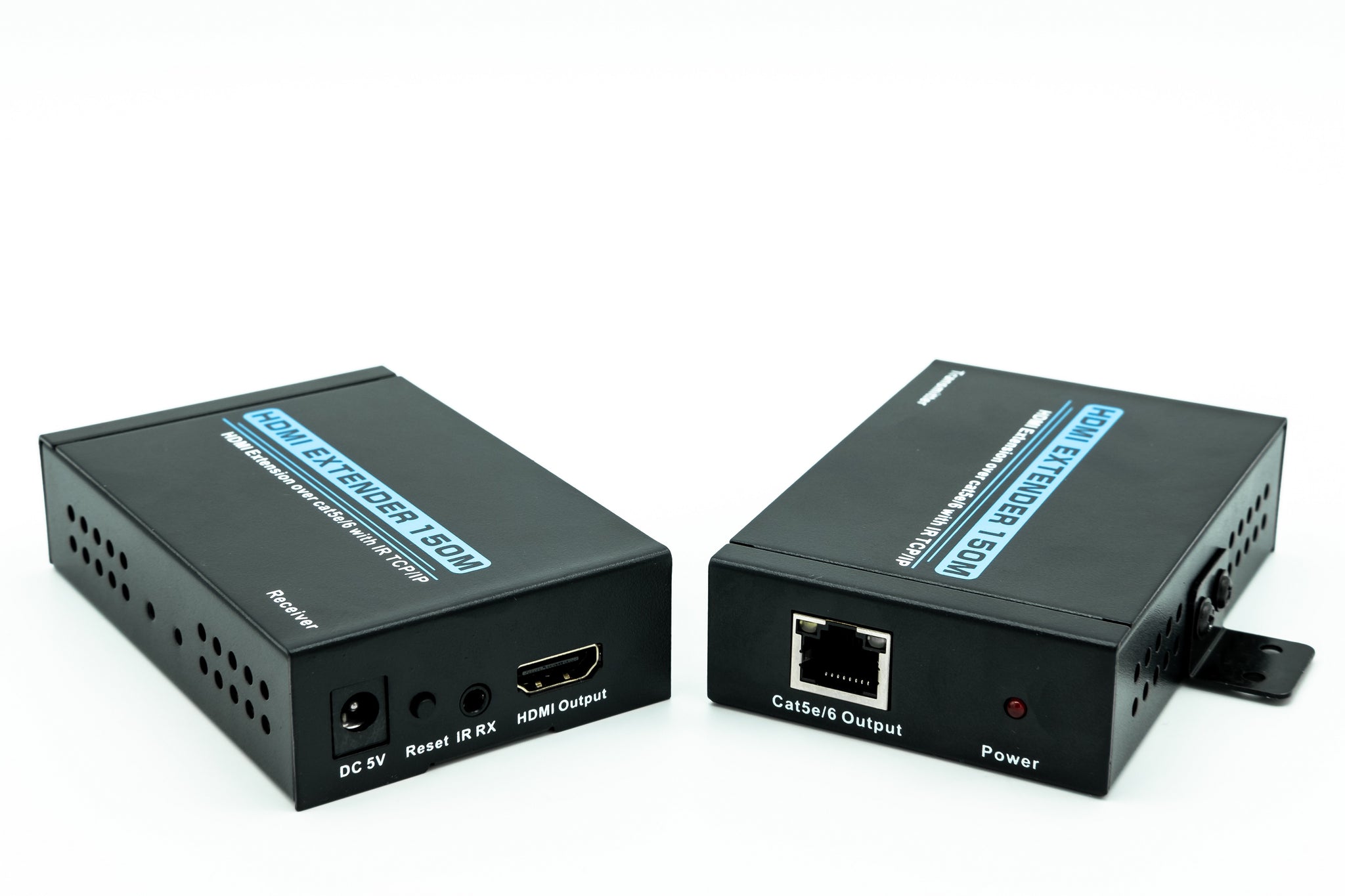

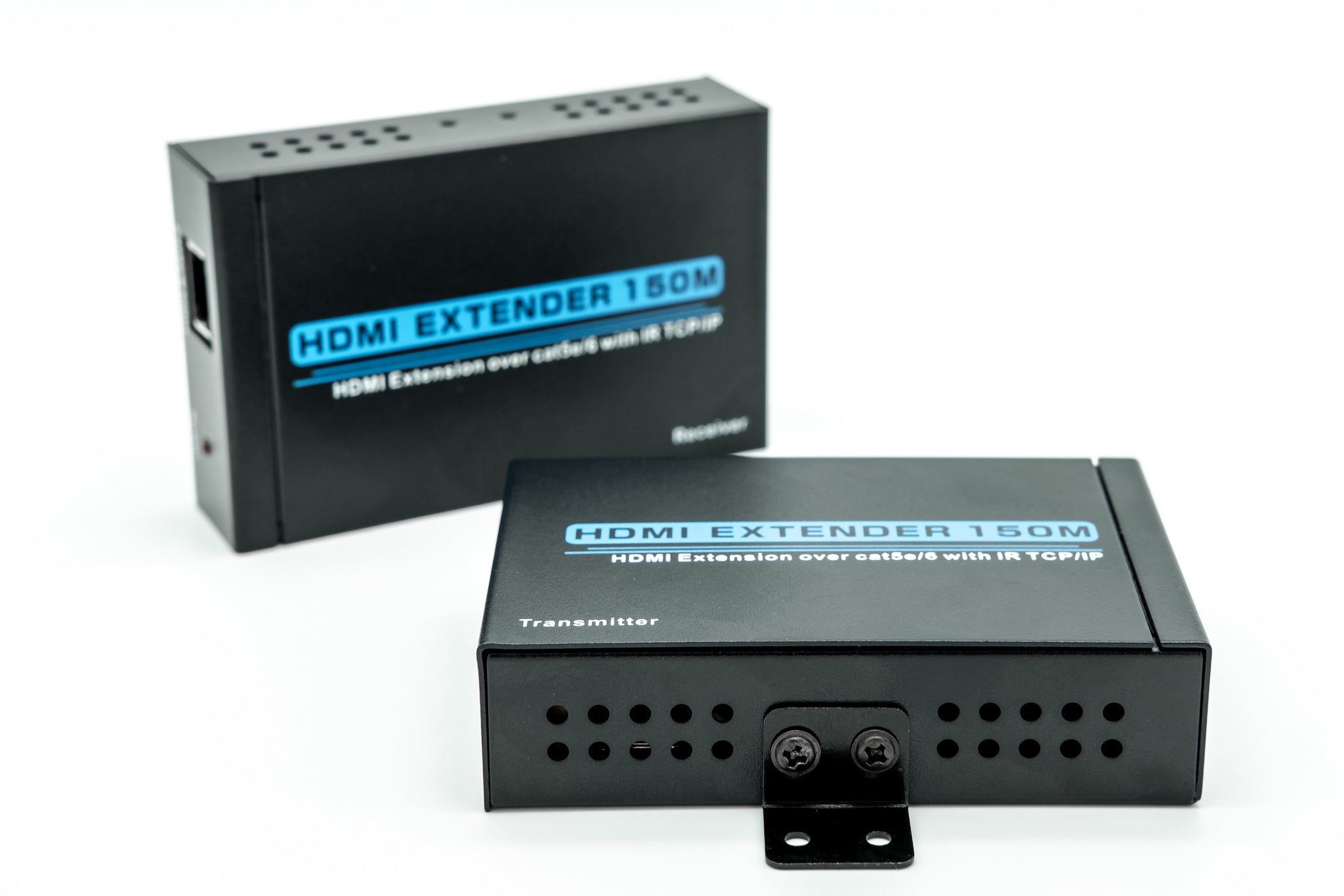

The new LMS Data C-HDMI-EXT-150 is a professional class 1080p HDMI extender that offers superb extension distance for your HDMI TV, monitor or other HDMI displays, including audio.

Using TCP/IP transmission technology over Ethernet means you simply connect a quality Cat5e or Cat6 cable to connect the supplied Transmitter and Receiver, using existing HDMI cables for the end connections and enjoy up to around 150 metres of total length HDMI broadcasts.

Ideal for education and commercial applications that need longer HDMI signal connections, using Cat5e or Cat6 cables also means easier cable installations when compared to HDMI, and far cheaper too.

Integrated IR remote control comes as standard allowing remote device control from your existing IR controls for the likes of TVs, Home Theatres or Kiosk systems.

Specifications

TCP/IP Ethernet signalling over standard Cat5e/Cat6 cables

DC5V/1AMP PSU Supplied with HDMI-IN/HDMI-OUT

Supports up to 1080p, 720p, 576p and 480p

Extend your HDMI cabling up to around 150 metres

Supports HDMI 1.3 signalling with HD audio on HDMI

Integral IR remote control relay support

Ideal for Education, Commerce, Theatres and Home Theatres

Dimensions: 6.5cm x 10cm x 2.2cm (LxWxH) approx

Technical Info

SKU/MPN: C-HDMI-EXT-150

EAN: 8400800036131

Weight:

Dimensions: 6.5cm x 10cm x 2.2cm (LxWxH) approx

Files

Datasheet – C-HDMI-EXT-150.pdf
