4.3" LCD HD/AHD CCTV Camera Tester - Rechargeable 2600mAh Battery

AHD All Purpose CCTV Analog and CCTV Tester

Effective CCTV Test & Deployment Solutions - On The Move

Fed-up with carrying around a laptop or BNC monitor to verify your CCTV camera deployments? Need a quick and effective method of CCTV camera diagnostics while on the move?

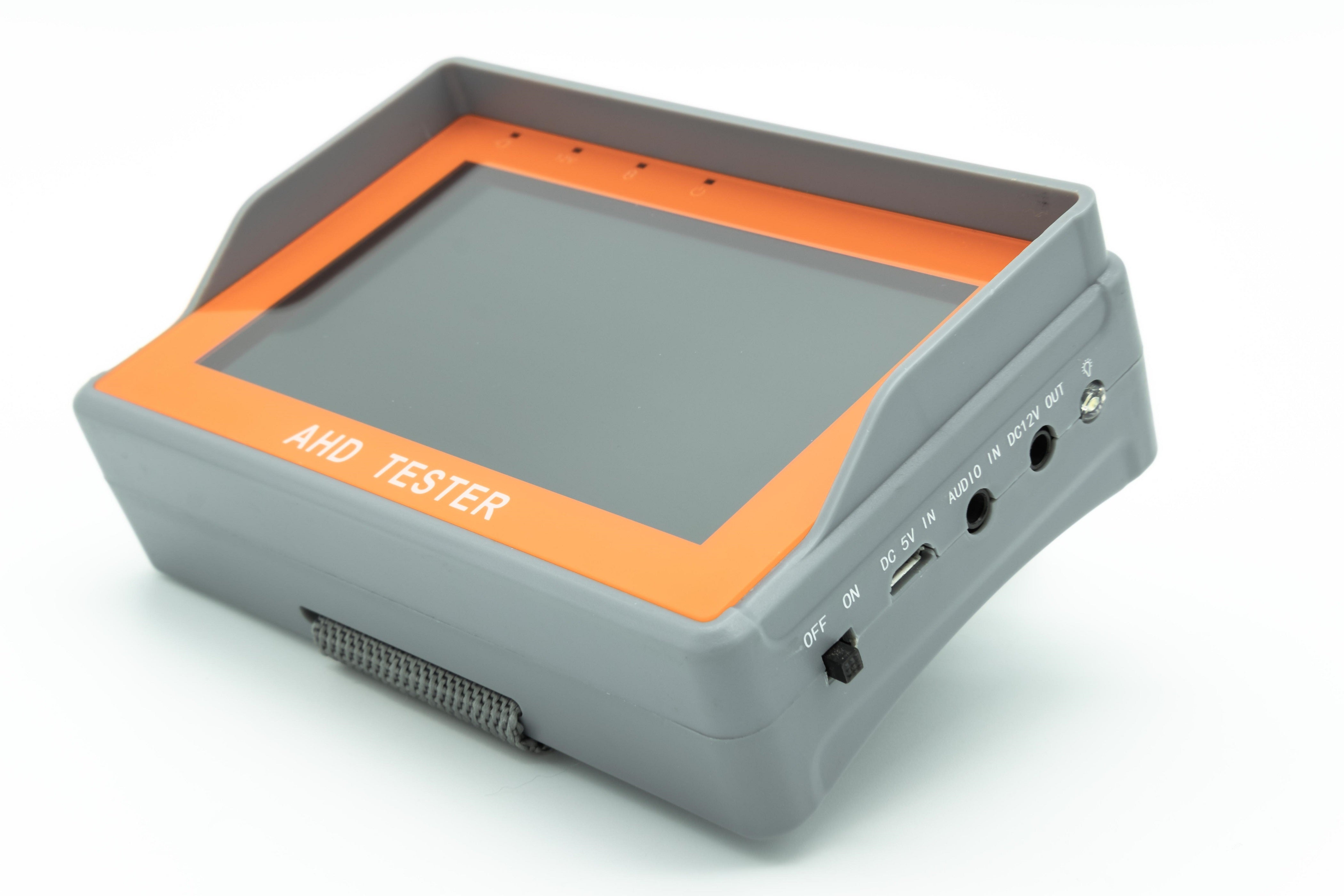

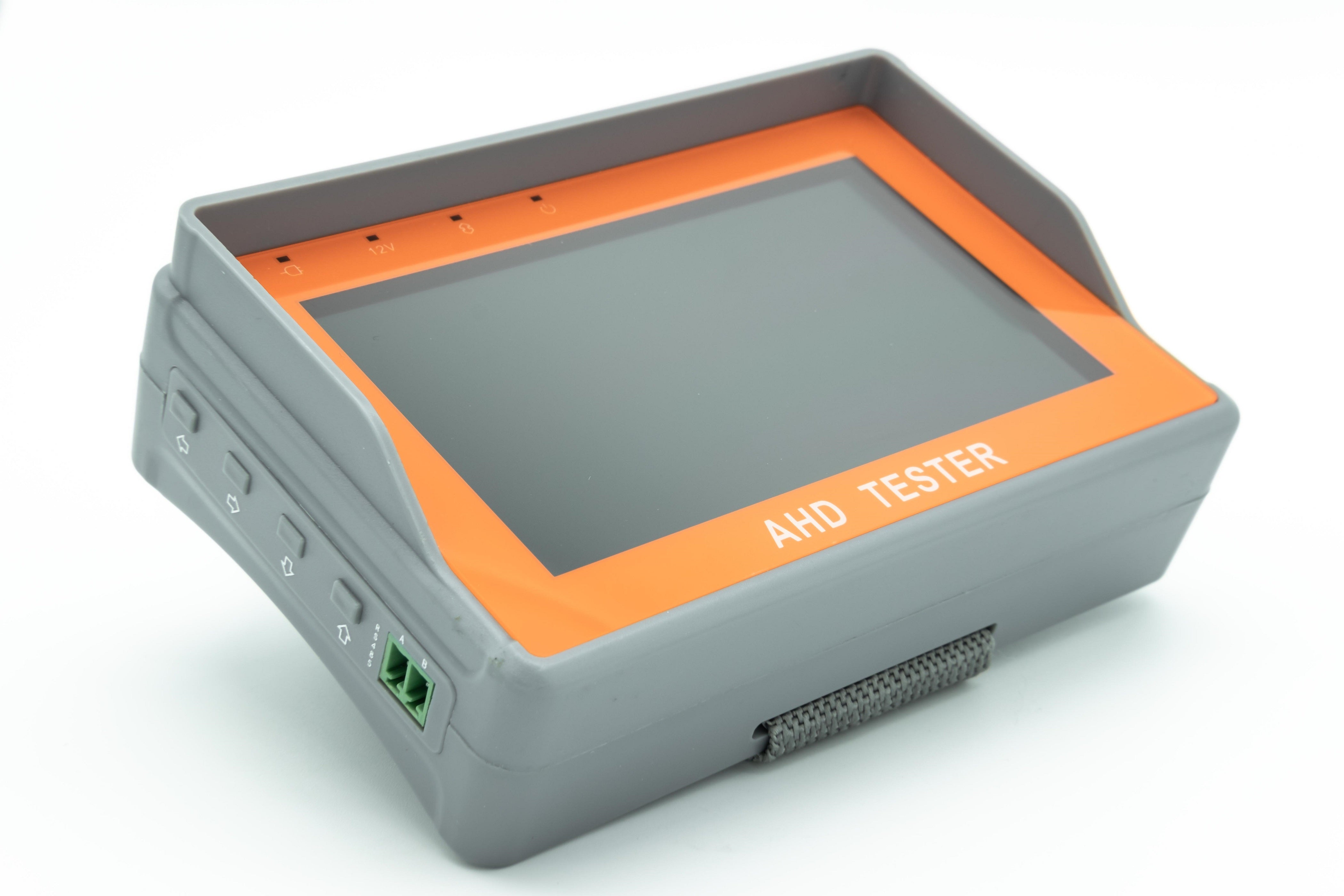

The exciting, new BLU-PT-AHD7A is a totally integrated, wearable colour CCTV diagnostic monitoring screen that has all, if not more functionality than desktop BNC CCTV monitors.

Simply strap to your arm with its adjustable strap and carry out totally effective CCTV installations, camera alignments and fault finding, even when up a ladder or in restrictive spaces.

Using its rechargeable, 4.3-inch full colour screen with up to 20fps means you simply connect your existing BNC CCTV camera and away you go. PTZ camera? No problem, full verification of PTZ control is also built-in with separate on-board keys.

Built-in audio also allows audio pickup confirmation from your camera as well as an integral LED touch for hard to find cables. Up to 8 hours battery life from a single charge, the BLU-PT-AHD7A features a complete test lead bundle including BNC, phono and of course USB charge cable and plug.

Specifications

Wrist-mounted 64K colour, 4.3-inch QVGA LCD display

PAL/NSTC automatic detection for most CCTV cameras*

Video Support: AHD and CVBS up to 20fps

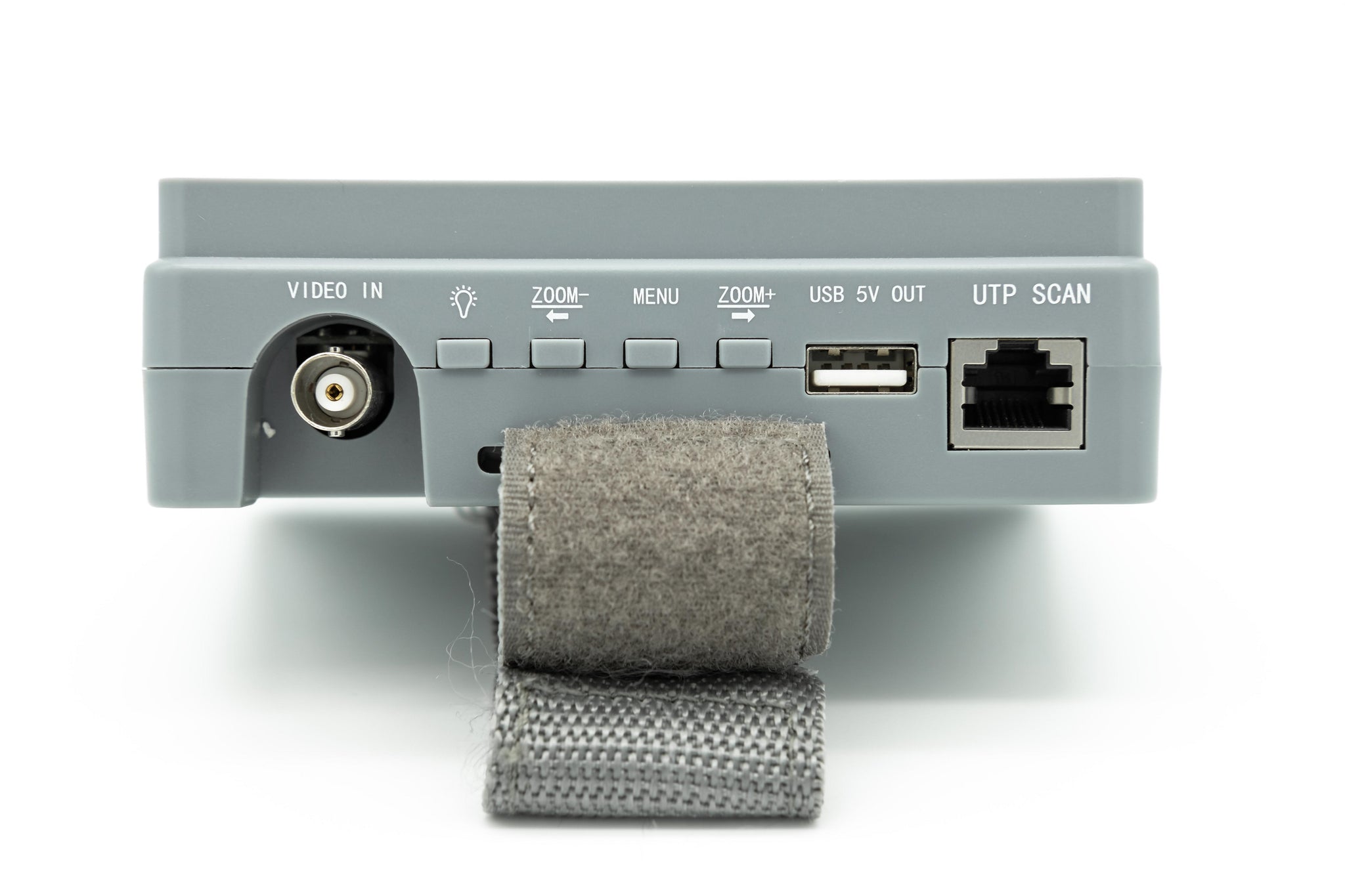

Inputs: 1-Channel BNC, Phono Audio-In, DC-12V input

On-board control of PTZ camera functionality

Internal speaker for CCTV audio feedback testing

Rechargeable 3.7v (2600mAh) Battery - Up to 8hrs usage

Integral LED torch - Velcro(tm) type adjustable arm strap

Supplied test cables, BNC, USB charge cable, croc cables

Overall Dimensions: 120mm(W) x 80mm(H) x 40mm(D)

Technical Info

SKU/MPN: BLU-PT-AHD7A

EAN: 8400800035790

Weight:

Dimensions: 120mm(W) x 80mm(H) x 40mm(D)

Files

Datasheet - BLU-PT-AHD7A.pdf
