Description

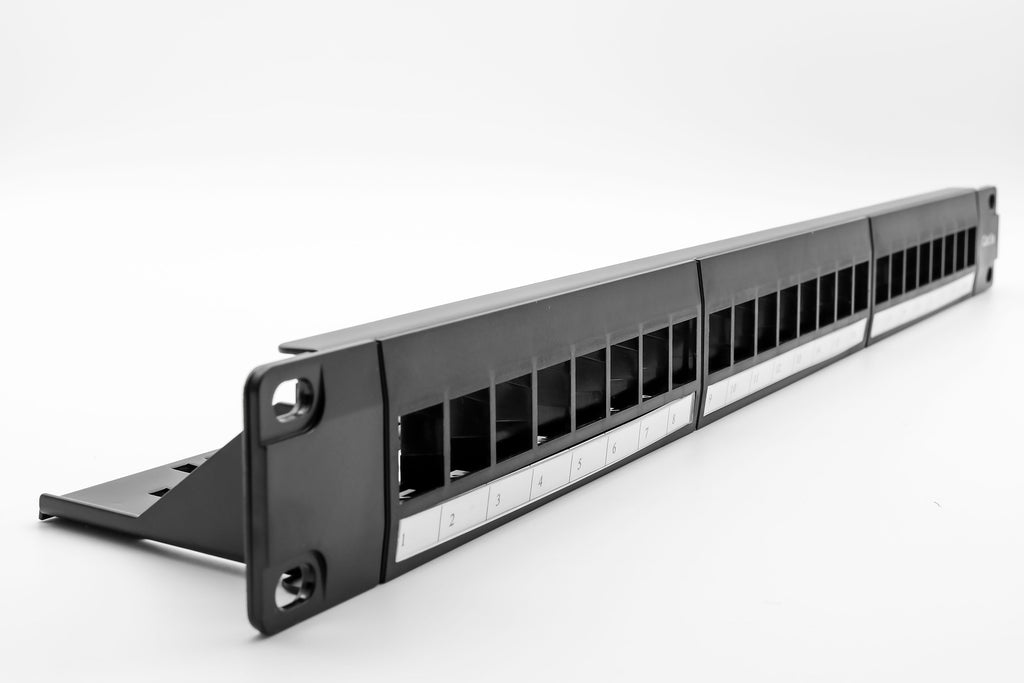

The LMS Data PPAN-24-THRU is 24 Port certified CAT5e UTP Patch Panel which is unique in that it has fully modular and replaceable CAT5eUTP ports. Simply snap in or snap out and mix and match with other accessories or when a port is damaged.
Fully Gigabit Ethernet certified means it's ideal for running legacy and advanced networking protocols to Gigabit Switches up up to 1000Mbps. Also ideal for telecom, VoIP, CCTV-IP, and other Ethernet-based standards.
Long-life, nickel-plated female RJ45s, the port modules use a through-coupler system so simply connect a RJ45 terminated cable to the rear of the panel.
Key Features:
- Certified CAT5E Performance for Gigabit Ethernet

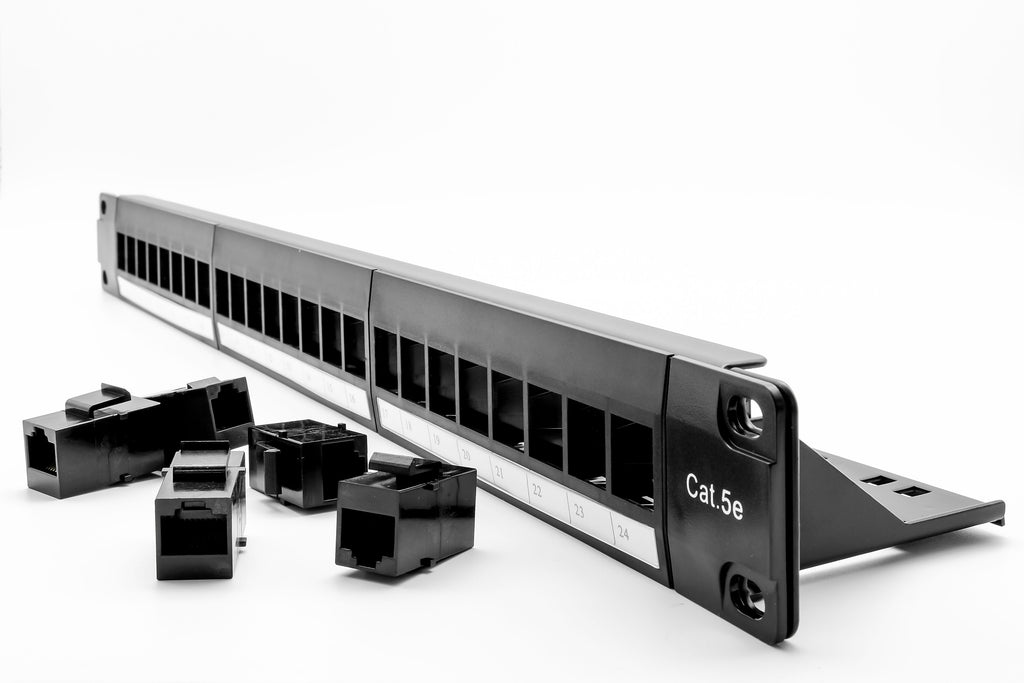

- Fully modular, snap-in, snap-out RJ45 port system
- 1u High means it fits in the smallest of data cabinets
- Part of the Synthesis 25-Year Warranty Solution
Applications:
- Office, Education, and Home Structured Cabling Installs
- Ideal for Gigabit Ethernet (1000Mbps) Data Networks
- Create fault-tolerant LANs by simply patching ports
Product Code:
- Part Number: PPAN-24-THRU
- EAN: 8400800032188
- Weight: 0.5Kg approx
Technical Specifications:
- Port Count 24 Ports UTP
- Dimensions 1U 19-Inch Design Format
- Design Through Coupler System
- Performance 10/100/1000Mbps Gigabit Compliance
- RJ45/IDC Connects Nickel and Phosphor Bronze
- Port Identification Numbered
- Fixings Supplied M6 Nuts and Bolts
* Specifications and product design are subject to change. E&OE.
Files:
Check Out Our Range of Structured Cabling System Accessories >> Click Here
Go Back to Collection

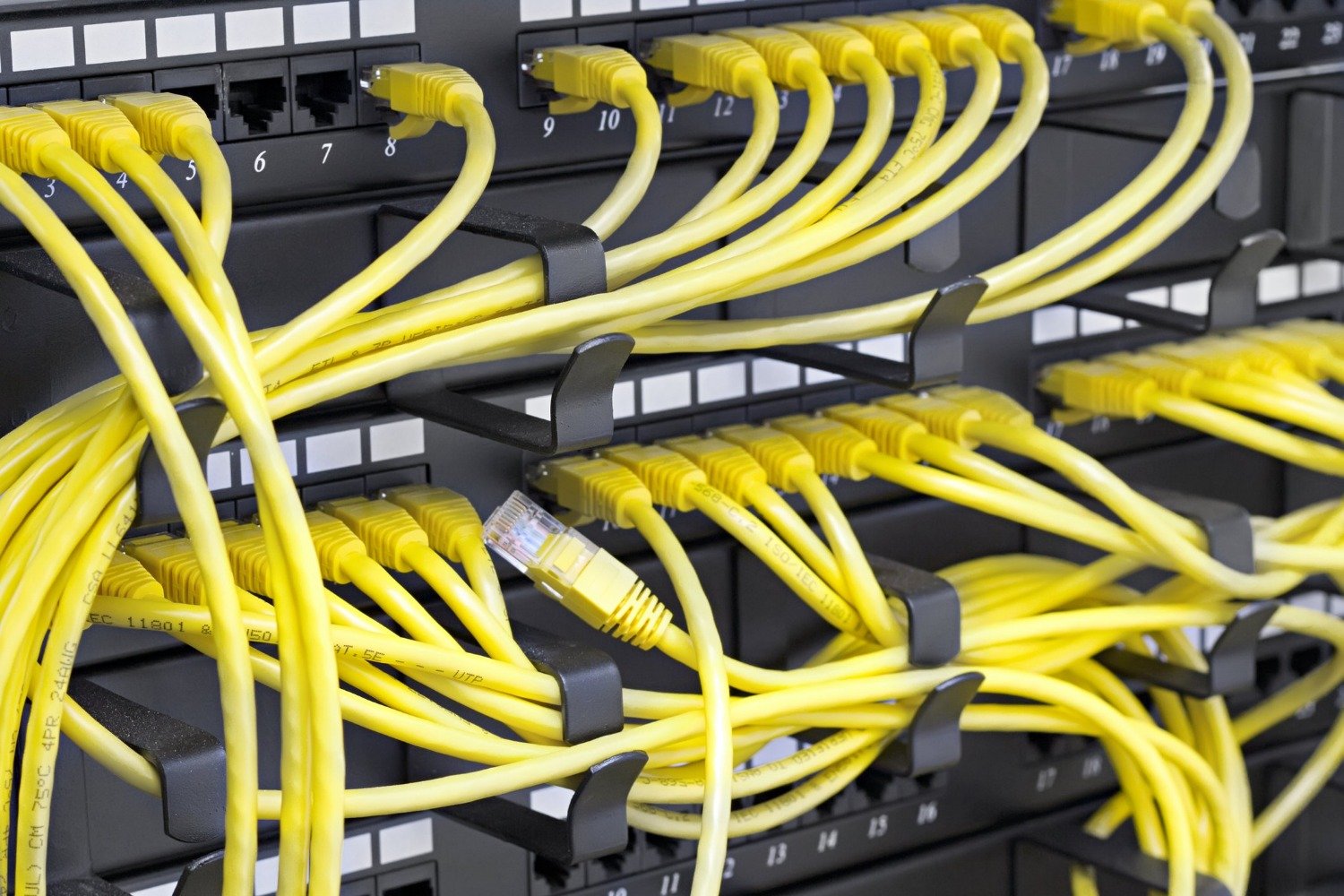

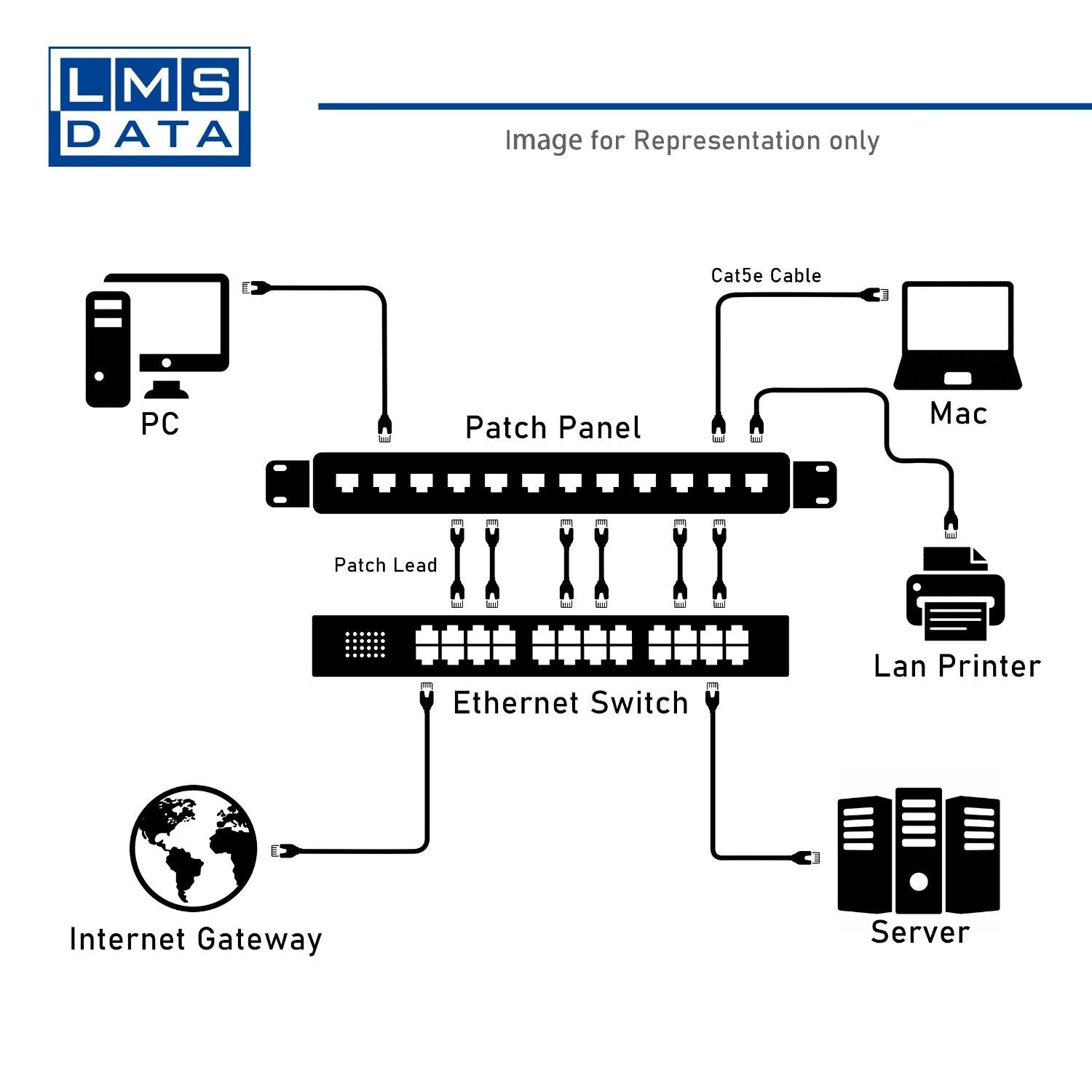

What's a Patch Panel? Designed in such a way that smaller length, separate patch leads can be plugged from an installed Switch to the patch panel. That way, if a Ethernet port fails, its just simply can be 'patched' to another port. Ideal for when you need to re-establish LAN links and to wall data outlets.
