Description
The Dynamode SW240010-R is a 24-port Fast Network Ethernet Switch that allows anyone to create their own network at home or office. Fully Plug n' Play, just plug in and connect your PCs, Macs, Printers, or any other networkable device.
Complete compatibility and auto-sensing 10/100Mbps in full and half duplex mode coupled with Ethernet MDI/X cross-over means the SW240010-R can be stacked to create bigger port densities if required.
Energy efficient, alloy construction with a low-heat power supply offers maximum reliability 24/7.
Key Features:
- Only 1U high means the Switch can be fitted into a small cabinet
- Plug n' Play – just connect to your existing Switch, Router, etc
- Reliability built-in – Alloy construction, built-in power supply
- Backed up by Dynamode's exclusive 3-year warranty

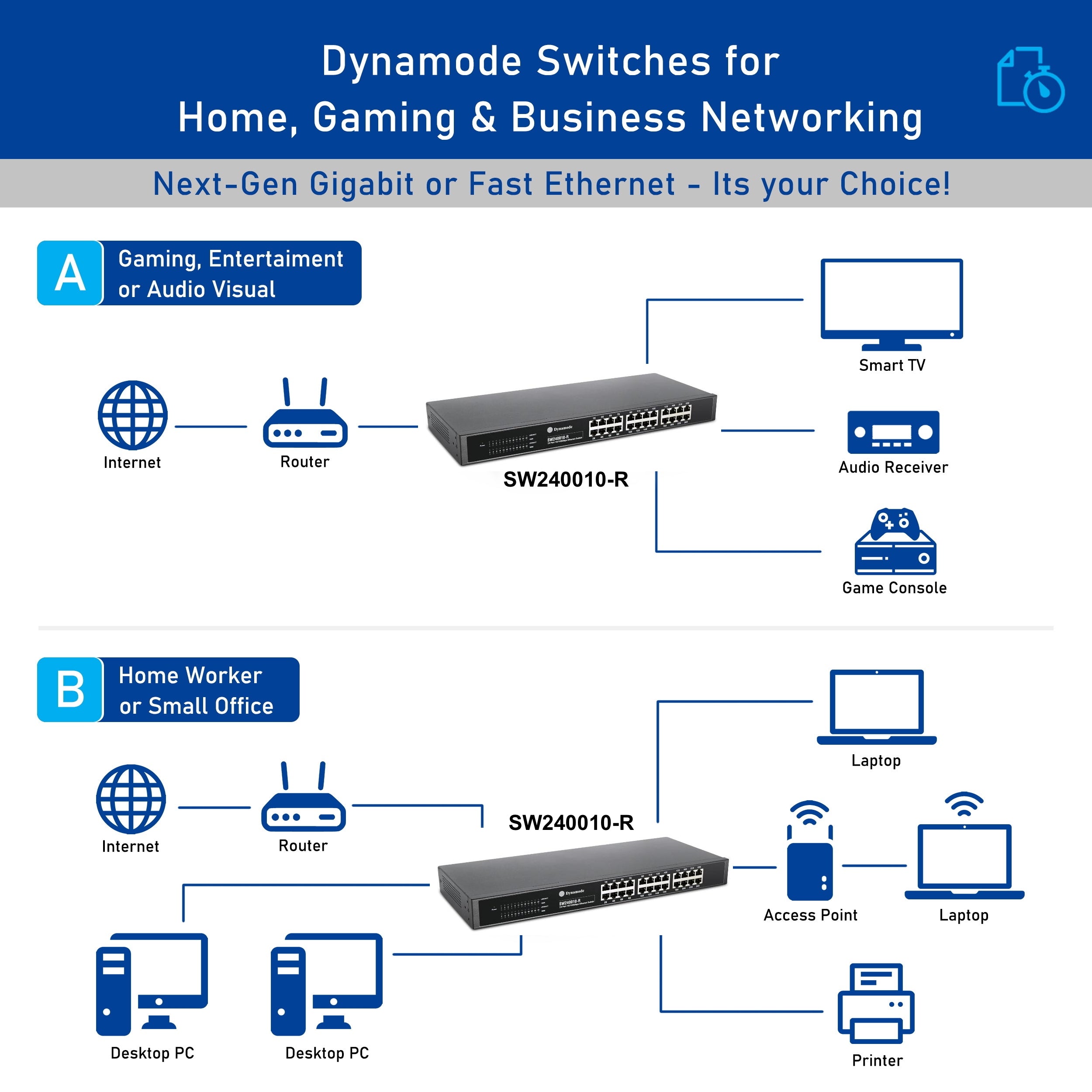

Applications:
- Create additional Ethernet connections to your existing Switch and router in both home, SoHo, and office LAN setups
- Ideal for remote and teleworks, branch offices that have a faster and more reliable network connection
- Public sector and educational environments such as classrooms, lecture theatres with high port densities
Product Code:
- SKU/MPN: SW240010-R
- EAN: 8400800004369
- Weight: 1.0Kg approx
Technical Specifications:
- Warranty: Dynamode 3-Year Warranty
- Compliance: IEEE802, 802.3u, IEEE802.3az
- Chassis: 1U alloy design for RF suppression
- Design: RiSC chipset, store and forward
- Ports: 24 Port 10/100Mbps auto-sensing
- Duplex: Control Full/Half Duplex back pressure
- Compatibility: Cat5, Cat5e, Cat6, UTP and STP
- Status LEDs: 24-Port status for Link, Data, etc
- Power Supply: Internal, Switch Mode 110-240VAC
Supplied With:

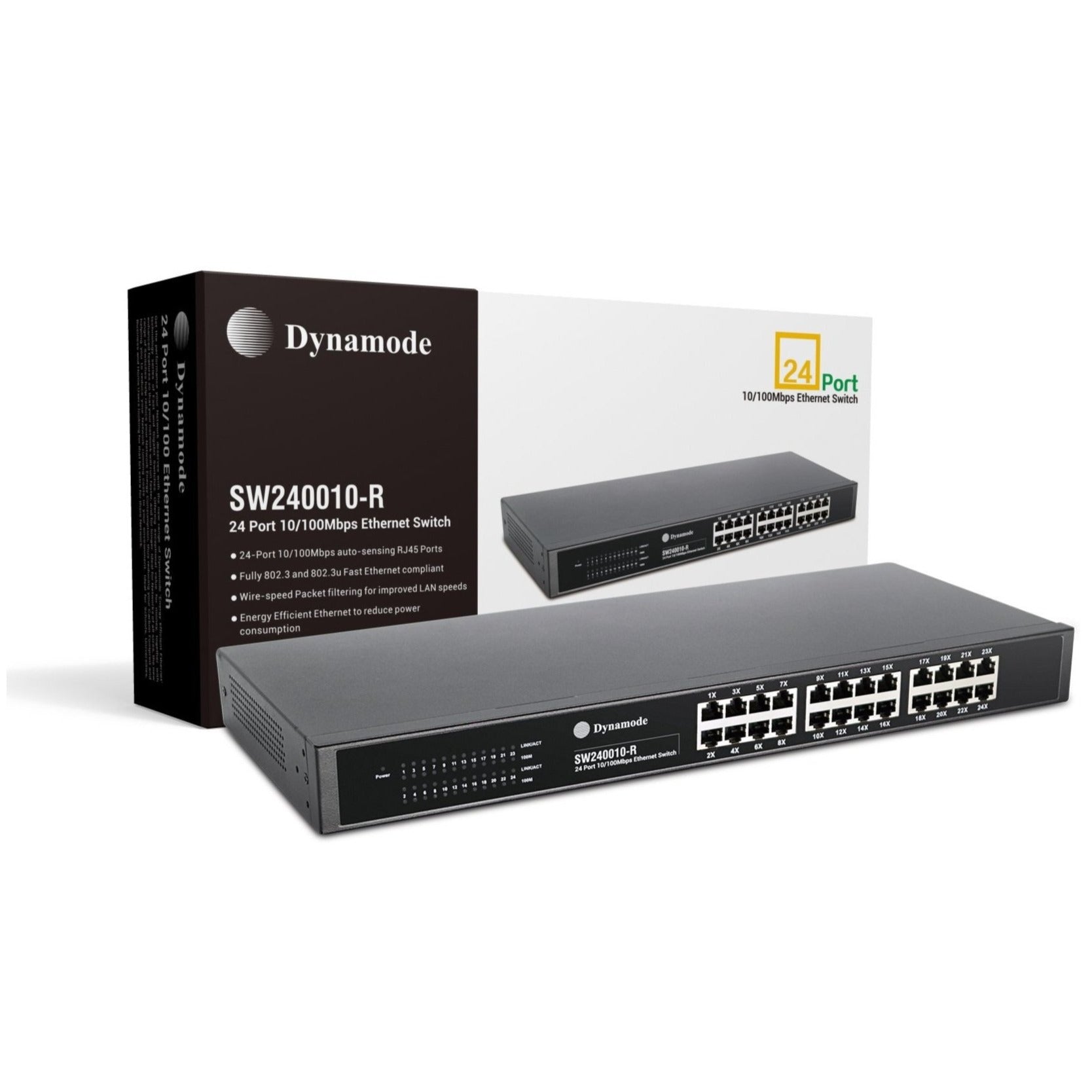

- SW240010-R 24 Port 1U 10/100Mbps Fast Network Ethernet Switch
- Metal rackmount brackets (1 pair)
- UK AC power cable
- User guide
Files:
Go Back to Collection
* Specifications and product design are subject to change. E&OE.
What's a LAN? Local Area Network is your wired Cat5e cabling for PCs, Printers, Servers, IP Cameras and other office Ethernet devices. The Switch can be securely mounted in a standard data cabinet.
